Barn 40
Guest house / ADU
| Heated area | 40 m² (430 sq ft) |
| Footprint | 6.4 × 7.5 m (21' × 24'7") |
| Layout | 1 bedroom · 1 bath · terrace |
| Design set | 17 sheets · 14 renders |
| Units | Metric + imperial (ft-in) |
| Plan code | G38 |
| PDF design set | $59 |
| PDF + DWG/model files | $99 |
| Builder licence | from $149 · details |
Plans, sections and details
What you get

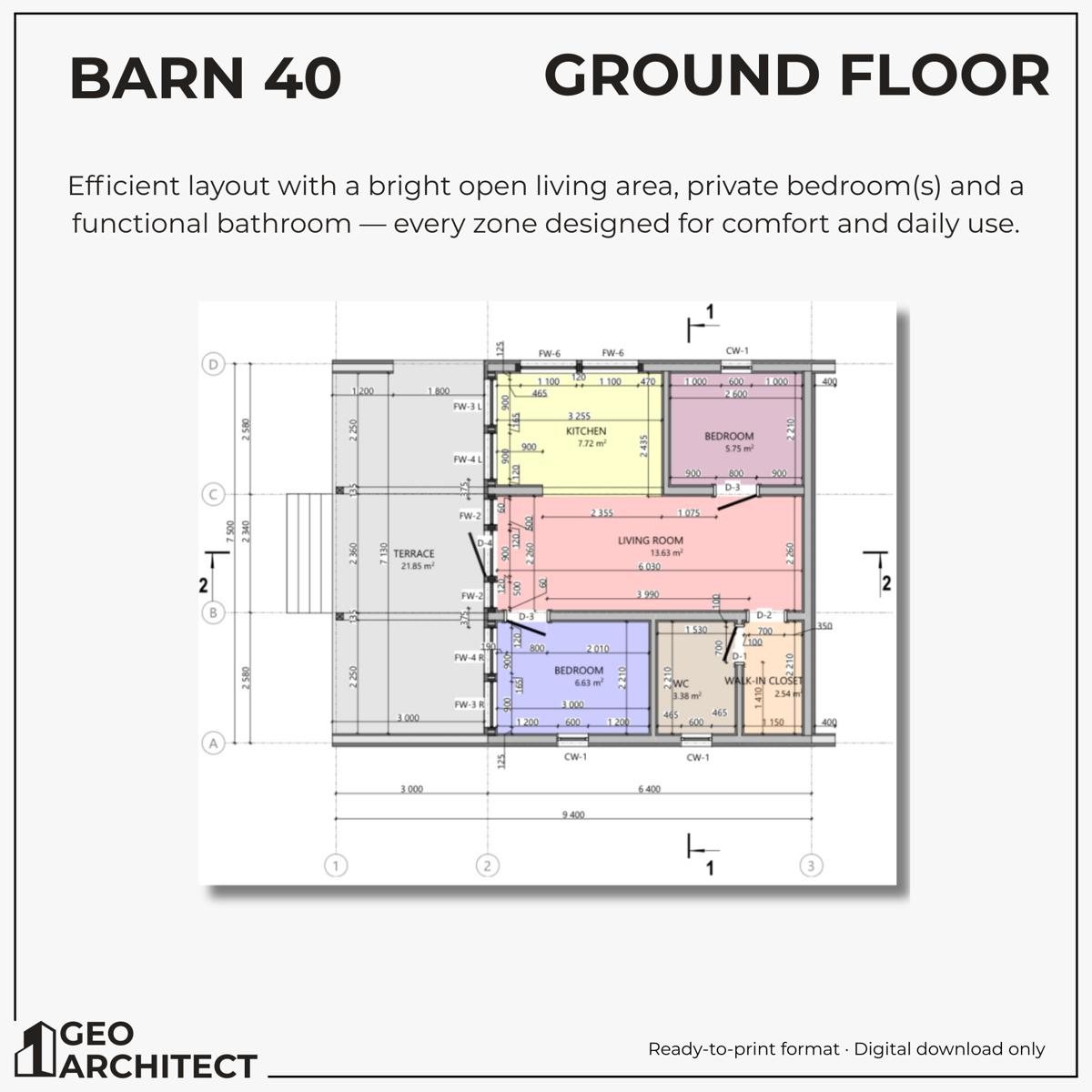

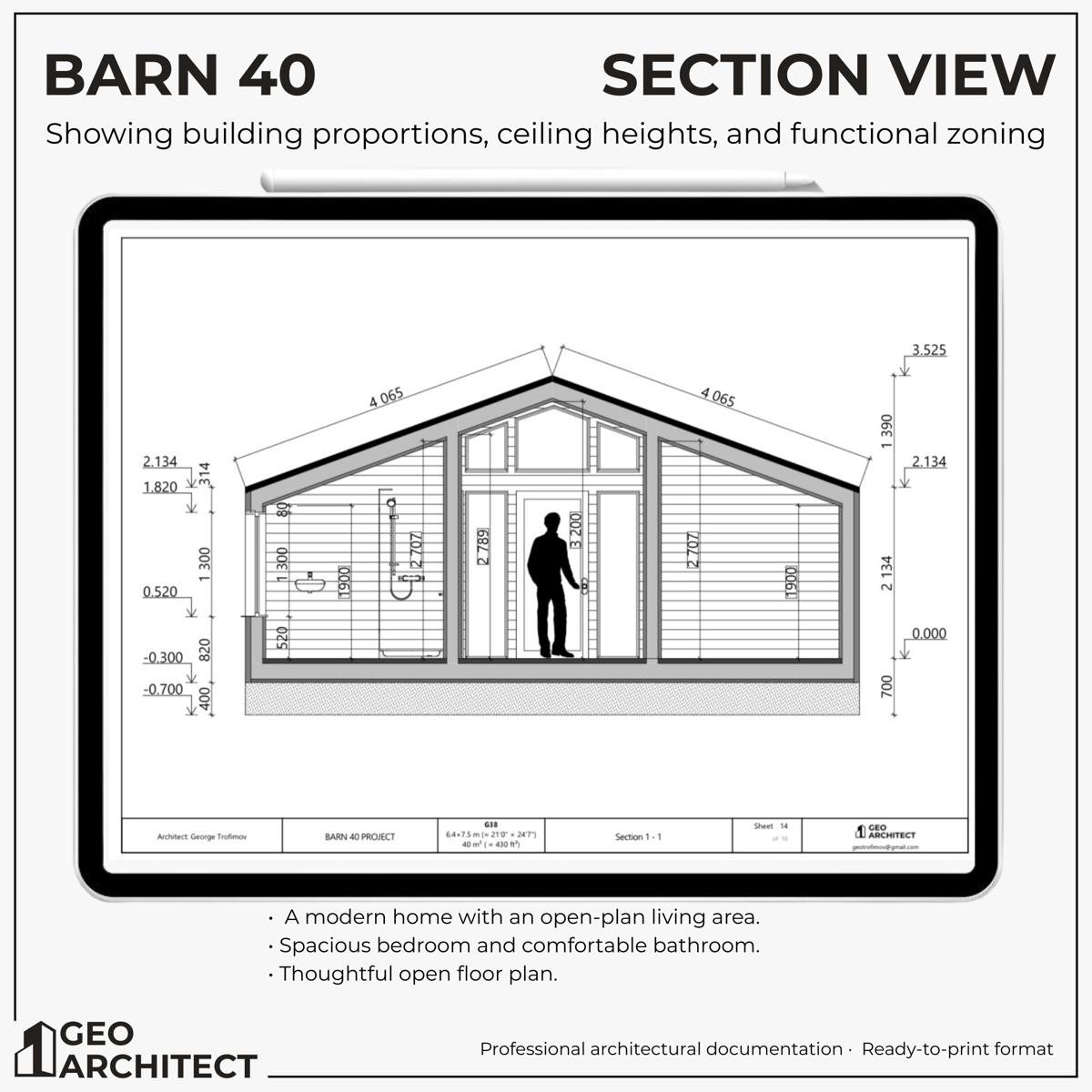

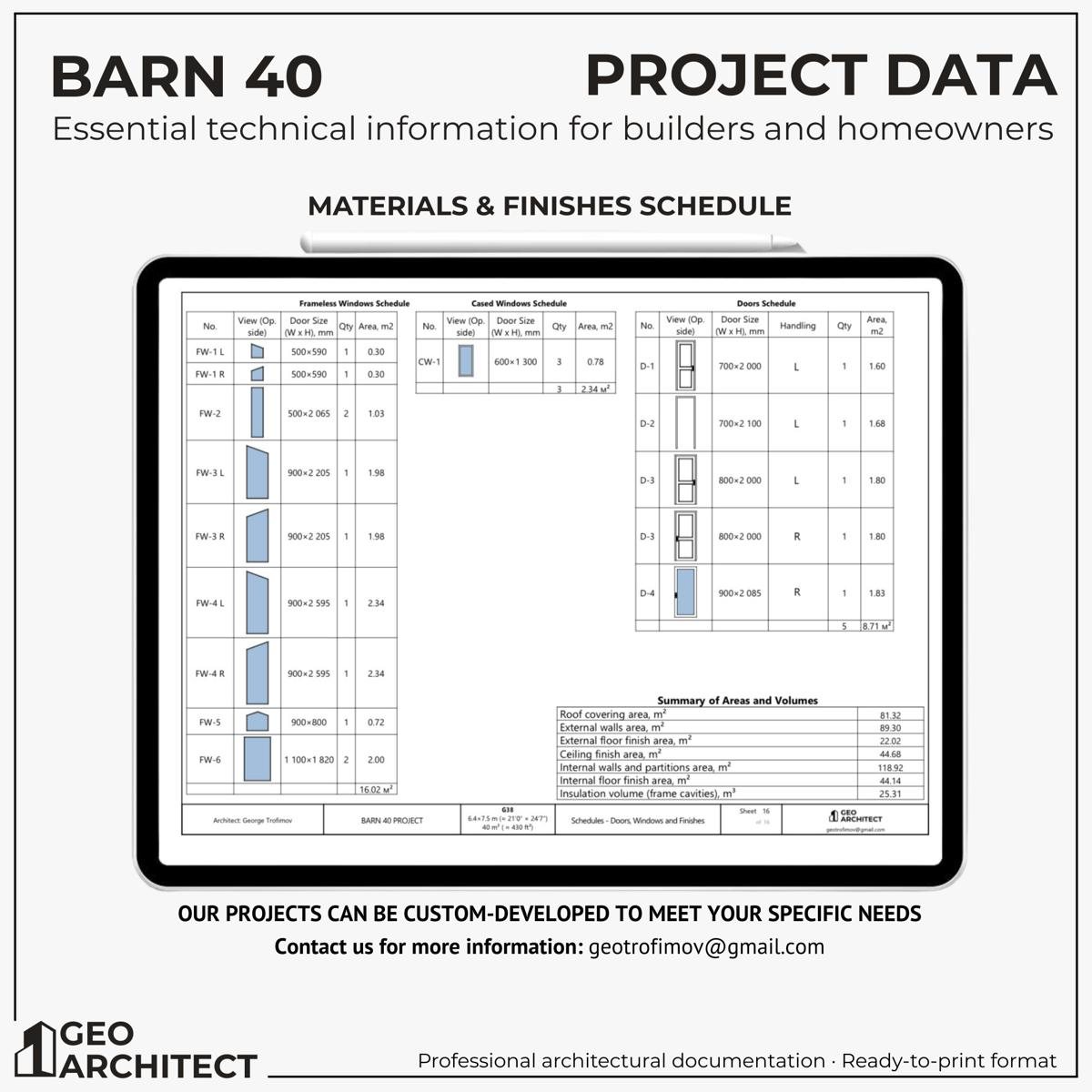

- Design set (PDF): floor plans, roof plan, sections, four elevations, 3D views, window and door schedules
- Metric drawings; imperial (feet and inches) on request
- Renders for presentation
- DWG and model files with the builder licence
This is a concept design set, not construction drawings. Not included: structural drawings and engineering, foundation design for your soil, MEP, energy calculations or permit documents. A local licensed professional must review and adapt the plan before construction. Sold for one build.
